Products

STRAIGHT, 90° & END REGISTER BOOTS

STRAIGHT, 90° & END REGISTER BOOTS

STRAIGHT, 90° & END REGISTER BOOTS

We manufacture standard and custom size register boots.  Some popular sizes are:

2.25x10x6, 2.25x12x6, 3.25x10x6, 4x10x6, 4x10x8, 4x12x8, 6x10x6, 6x12x8

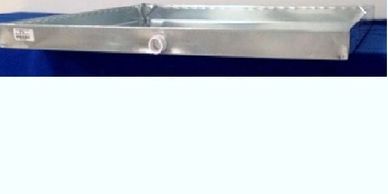

DRAIN PANS

STRAIGHT, 90° & END REGISTER BOOTS

STRAIGHT, 90° & END REGISTER BOOTS

We manufacturer many popular size drain pans.

All pans are 24 ga. galvanized steel with a 2" depth.

Standard placement of the 3/4" pvc plug is in the center of the longer side.


Some popular sizes are 24x24, 30x30, 30x60 & 32x72.

Not what you're looking for....we can customize for you.

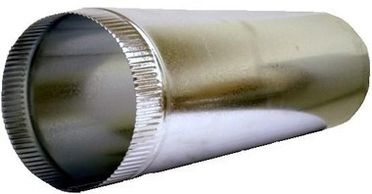

SNAP LOCK PIPE

STRAIGHT, 90° & END REGISTER BOOTS

SNAP LOCK PIPE

Snap Lock Pipe

Our galvanized pipe is available in 24" and 60" joints.  Some sizes are available in 120" lengths.

We can manufacture in 26 ga., 28 ga. or 30 ga.


24 ga. pipe is available in 48" lengths.

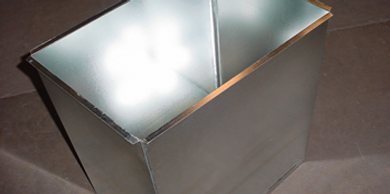

PLENUM BOXES

START COLLARS

SNAP LOCK PIPE

Manufactured out of 26 ga. galvanized steel our standard plenum boxes are 24" tall but we can customize for you.  Several styles are available.

Style #965  made with a ½" flange and unlined.

Style #970  made with no flange and unlined.

Style #925  made with a ½" flange and lined with 2" (R8) liner.

Style #926  made with no flange and lined with 2" (R8) liner.

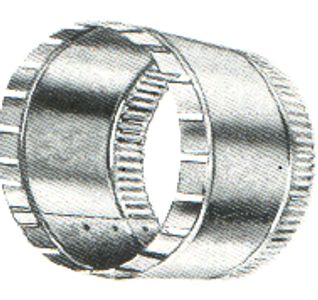

START COLLARS

START COLLARS

START COLLARS

We offer Round Start Collars for Metal and Duct Board applications.

Available without damper,  with damper or with damper and 2" standoff. Stock sizes 4" - 20".


Rectangular start collars are made to order.

AIRTITES

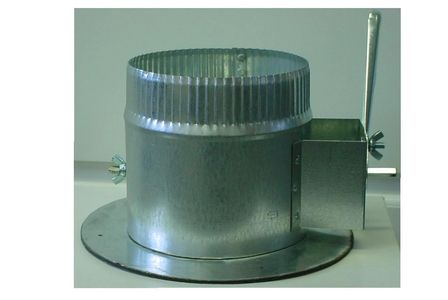

ROUND AIRTITES

ROUND AIRTITES

ROUND AIRTITES

FOR USE WITH ROUND DUCT


    Round Airtites w/ Gasket    Style #171

    Available with Damper        Style #173

                  with Damper & 2" Standoff  Style #175 (shown)


Sizes 4" - 20"

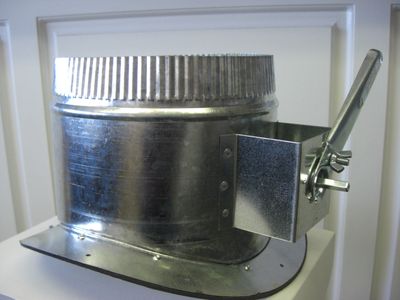

FLAT AIRTITES

ROUND AIRTITES

ROUND AIRTITES

FOR USE WITH FLAT DUCT


Flat Airtites w/ Gasket   Style #167

 Available with Damper   Style #168

                  with Damper & 2" Standoff  Style #176 (shown)


Sizes 4" - 20"

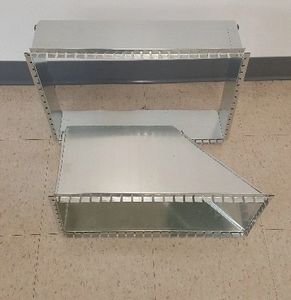

BOOTS & PLASTER FRAMES

90° REGISTER BOOT

STRAIGHT REGISTER BOOT

90° REGISTER BOOT

Style #243

Popular sizes include:

4x10x4,  4x10x6,  4x10x7,

4x12x6,  4x12x7,  4x12x8


Other sizes available.

END REGISTER BOOT

STRAIGHT REGISTER BOOT

90° REGISTER BOOT

Style #244 (standard)

Also available in

Right #244R

& Left #244L

Popular sizes include:

4x10x4,  4x10x5,  4x10x6

4x12x6,  4x12x7,  6x10x6


Other sizes available.

STRAIGHT REGISTER BOOT

STRAIGHT REGISTER BOOT

STRAIGHT REGISTER BOOT

Style #241

Popular sizes include:

2.25x12x6,  3.25x10x6,  4x10x4

4x10x5,  4x10x6,  4x12x8,  6x10x6


Other sizes available.

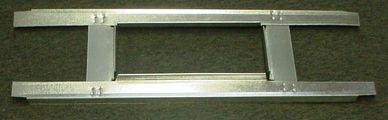

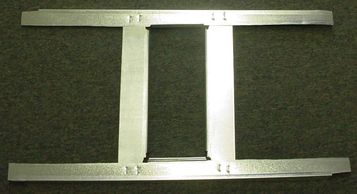

PLASTER FRAME

PLASTER FRAME

STRAIGHT REGISTER BOOT

Style #PF

Regular way Plaster Frames.

 26 ga. galvanized construction

Stock sizes include 4x10x24, 4x12x24, 6x10x24, 6x12x24.


Other sizes available.


PLASTER FRAME

PLASTER FRAME

PLASTER FRAME

Style #PFOW

Opposite Way Plaster Frames.

26 ga. galvanized construction.

Stock sizes include 4x10x24

and 4x12x24.


Other sizes available.

BOXES

BULLNOSE

CASING with Flange

CASING with Flange

Style #BN

Bullnose boxes are lined

with 2" R8 liner.


Available sizes:

14x14 to 14x12

16.5x16.5 to 16.5x14


CASING with Flange

CASING with Flange

CASING with Flange

Casings support the weight of your air handler.  Let us know if over 200 lbs.  We use 2" R8 liner.


Constructed using

24 ga. galvanized steel with

flange on one side.


Style #929 - Lined

Style #939 - Unlined

Order as width x depth x height.




CASING

CASING with Flange

CEILING REGISTER BOX

Casings support the weight of your air handler.  Let us know if over 200 lbs.  We use 2" R8 liner.


Constructed using

24 ga. galvanzied steel with removable rails on all 4 sides.


Style #928 - Lined

Style #938 - Unlined

Order as width x depth x height.

CEILING REGISTER BOX

CEILING REGISTER BOX

CEILING REGISTER BOX

Style #353


Total height 6.5"

Popular sizes include:

6x6x6,  9x9x8, 10x10x10

12x12x8, 12x12x12,  22x22x12


Other sizes available.

KNOCKED-DOWN BOXES

CEILING REGISTER BOX

KNOCKED-DOWN BOXES

PLENUMS

CEILING REGISTER BOX

KNOCKED-DOWN BOXES

COLLAR

METAL START COLLAR

Galvanized metal construction.

 Standard length is  6" .

DUCT BOARD START COLLAR

Galvanized metal construction.

For 1.5" - 2" duct board.

Includes pre-cut damper holes.

TAPINS

Available as standard or 45 degree style.

 Standard length is 8".
